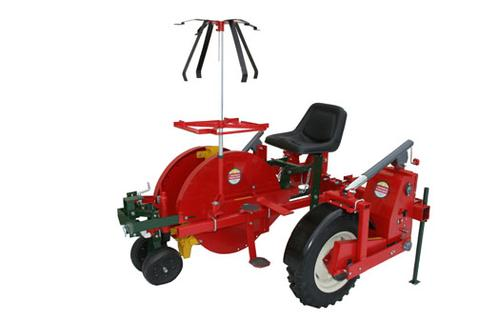

The Model 948 Mulch Transplanter has the same features as the 912 with plants spacing capabilities of 14", 17", 22", 27", 44" and 86".

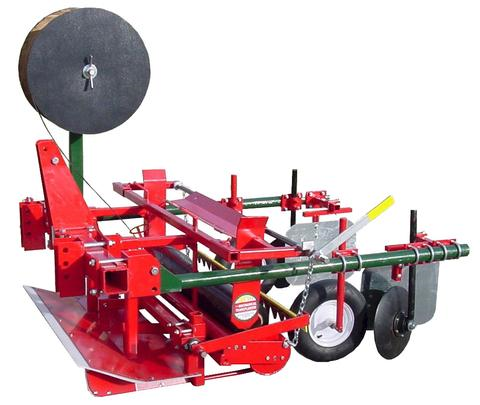

The Model 92 Deluxe Mulch Layer is the top of the line for plastic mulch layers and is the most fully adjustable and free floating layer currently on the market. A leveling pan gives very smooth and firm beds. Bed shaping shoes open furrow for the stretch wheels to hold the plastic while rear cover discs apply soil to edge of plastic. Large soil shields keep the plastic surface clean and allows for faster speeds.
Double roller for easy loading of plastic
Extra roll holder feeds new roll into machine with just a pull of a lever
Roller assembly allows for self starting of plastic, just set the machine down and go
Optional plastic cutting system cleanly cuts the plastic at the end of the rows with no need to get out of the tractor seat
Optional drip attachment available
Improved chain and gearing design gives 20% to 30% faster forward planting speed
Patented Front Float Wheel Drive System maintains correct ground contact at all times for both the drive wheel and rear packing wheels letting the units float independently for any number of rows. The wheel smoothes, firms and ideally prepares the soil providing accurate plant placement and proper depth control in all soil conditions
Direct Drive with 12 pocket chain gives all spacing needed-- from 6" and up
Adjustable axle eliminates the need for strawberry extensions
UHMW Rollers on all V-3 pockets allow for less friction and longer wear

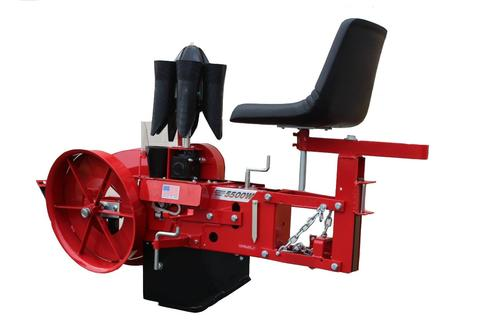

The Model 5500 is the most advanced planter available today. A new cam activated plant ejection system, six cup feeder, adjustable shoe and easy adjust patented ski system to eliminate the packing wheels, makes the Model 5500 the fastest and easiest-to-use transplanter on the market.
Movable seat and foot mount offer rows as narrow as 12".Cam activated plant ejection eliminates timing requirements and increases speeds
New adjustable shoe that uses one bolt to easily adjust the shoe width to make it fit most cell sizes
Easy ski adjustment for quick change "on the go" depth control for any cell size
Smaller diameter 6 cup feeder increases speed and operator efficiency and has no gaps or spaces for plants to fall between
Operators weight situated over the toolbar, not the planter
All planters are driven with our EZ17 drive system for quick change spacing

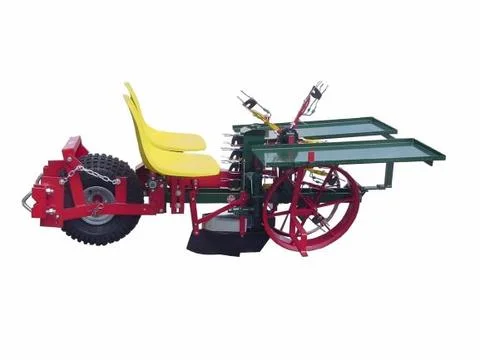

Model 33 6000
The Model 33 6000 transplants up to 3" round or square peat pots or large cells as fast as 60 plants per minute. The 12 pocket chain allows for fast and effective plant placement and a wide variety of plant spacings.
Float wheel direct drive system for positive spacing and uniform depth control
Quick change spacing sprockets for spacing as close as 8"
3" wide shoe
Flat trays to lay your plants on right out of the greenhouse
Bare root conversion available for small plugs or bare root plants
Complete packages available with tanks and hitches
